Concentric Circle Ray-Intersection Calculations
Calculates Front and Back points along a unified radius.
Measure Live
Every measurement. Every source. One view
Contact support@measurelive.com to receive your License Key
Import SoundVision PDF Report
Create Pa Fly cards for Ease and Accuracy
Communicate to your team
Perform ray angle intersection calculations
Mark your real world rigging points for optimal source deployment
Realworld to Spatial
Spatial to Realworld

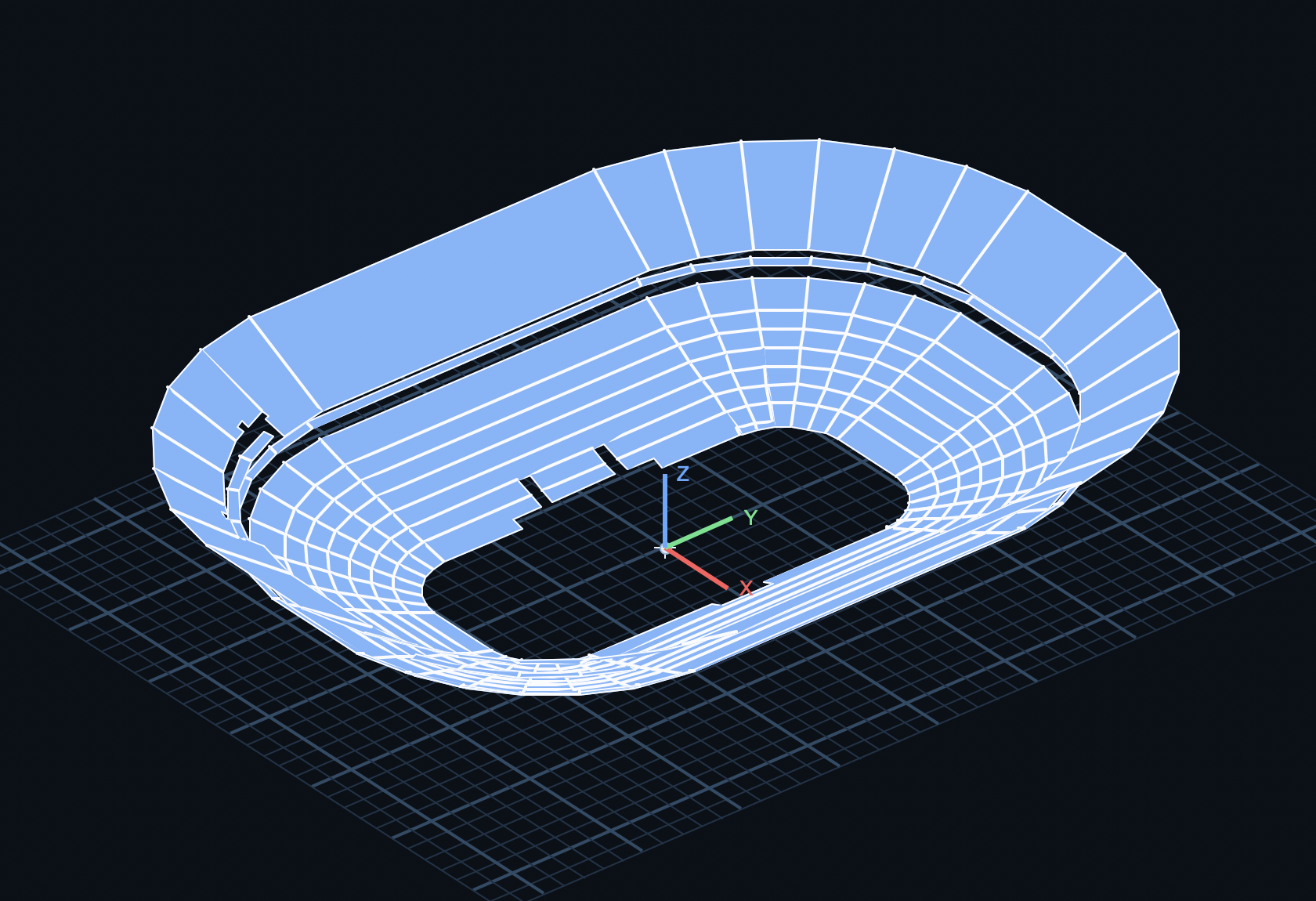

Load Points directly into ML Spatial Model

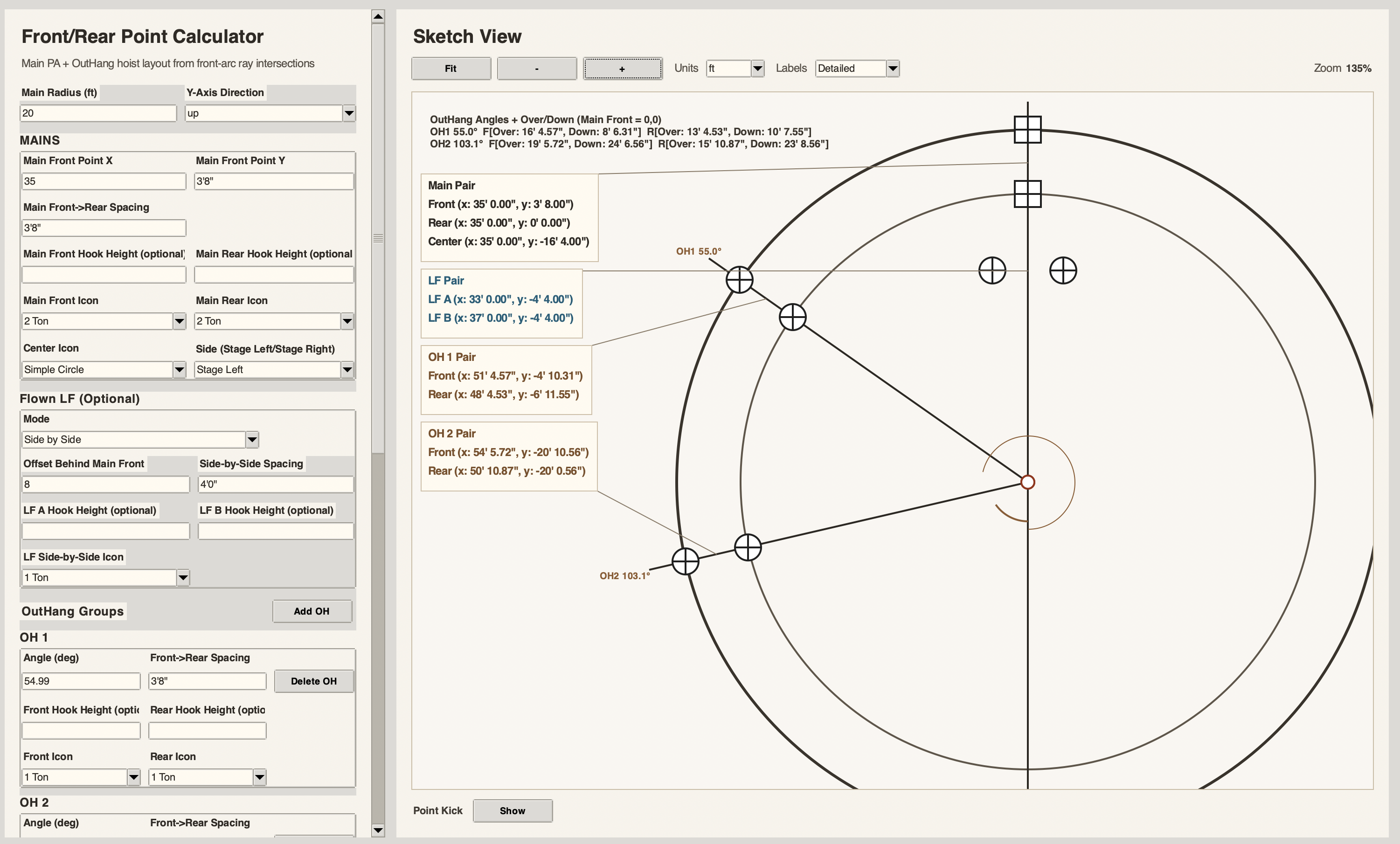

Point Calculator App
Geometry Solver
Input Model
Ray-to-Circle Point Solving
Compute center, ray intersections, and key spacing distances from practical field inputs, then verify results instantly in a scaled sketch and step-by-step math view.
Front Top and Back Top Coordinate Inputs
Define geometry using front/back top X-Y values and a front radius for deterministic solving.
Built for fast geometry checks where engineers need clear numbers, visual confirmation, and transparent math.
